Coloring

Modelify supports automatic coloring of blocks to support modeling guidelines. Rules can be set for each block type or block library, and can specify both the Background and Foreground color.

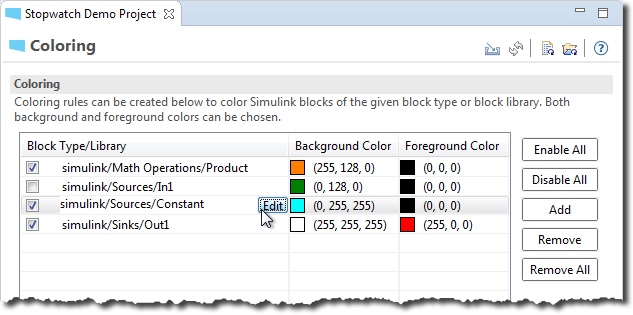

To set the color rules:

• Select the Coloring tab, and click on the Add button.
• Click the cell under the Block Type/Library column, and click on the Edit button
• On the dialog that opens, select the Block Type or Library and click OK.
• Click on Background or Foreground color, then the ... button.
• Select a color, then close the dialog.

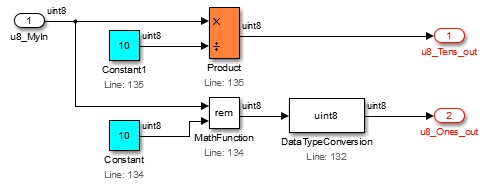

The image below shows a generated sample model corresponding to the color settings shown in the above figure. Note that coloring for inports is specified but disabled and thus it's not applied.
